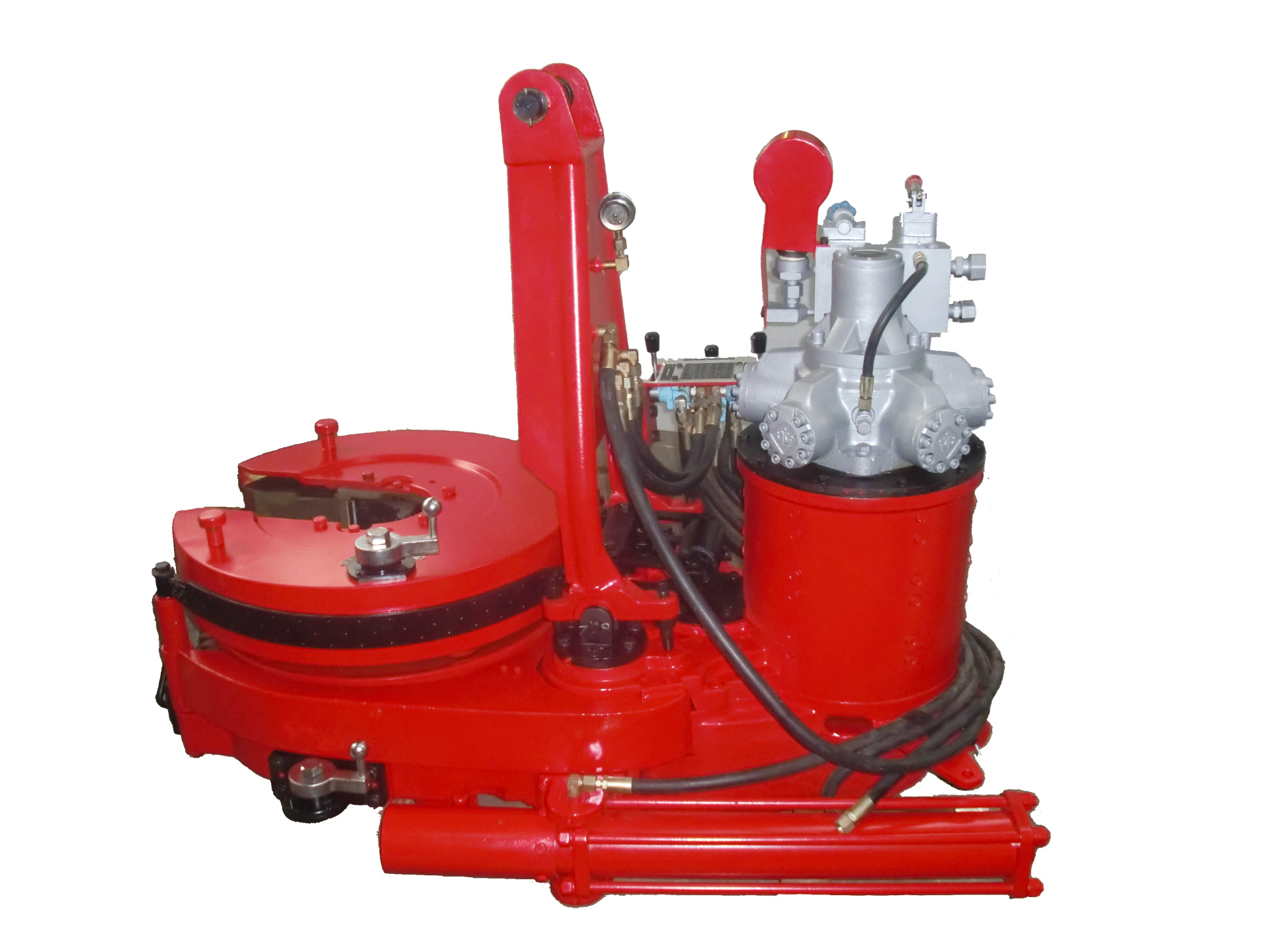

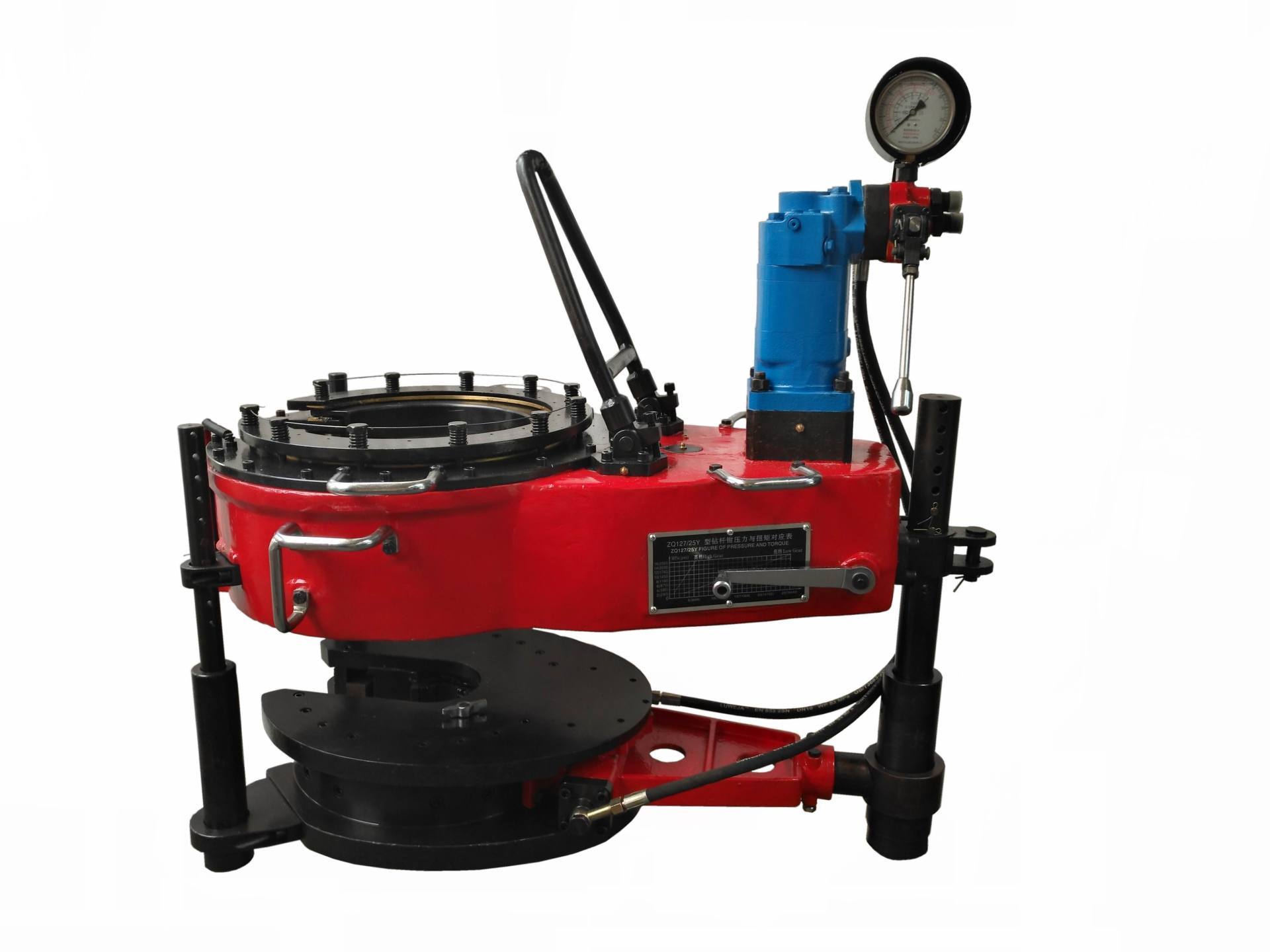

ZQ Series Drill Pipe Tongs

The main products are all kinds of power tongs, chucks, hooks, lifting cards, hydraulic stations and other petroleum equipment. A high-tech joint-stock enterprise integrating manufacturing, sales and research and development, specializing in the production of petroleum well repair equipment.

Key words:

ZQ Series Drill Pipe Tongs

  • Details
  • ZQ Series Drill Pipe Tongs is widely used in offshore and land drilling and workover operations. It is safe, labor-saving and

    improve work efficiency. Open type,which can be separated from the pipe string freely

    Features:

    Using pneumatic power to shift and drive backup tong.(Except ZQ127/25)

    It is a integral mechanism made by spin tong and torque tong.(Except ZQ127/25)

    Changing gear allowed during operation.

    New or old drilling pipe joint could be clamped reliably.

    Both directions could run the maximum torque and rotation speed.

    Models ZQ127/25 ZQ162/35 ZQ203/100 ZQ203/125
    Range ø60~140
    2 3/8” ~ 5 1/2”
    ø60~140
    2 3/8” ~ 5 1/2”
    ø127~203
    5”~ 8”
    ø127~203
    5”~ 8”
    High Gear Rated of Torque 5100N·m
    3760ft·lbs
    8000N·m
    6000ft·lbs
    7000N·m
    5160ft·lbs
    10000N·m
    7380ft·lbs
    Low Gear Rated of Torque 25000N·m
    8440ft·lbs
    35000N·m
    11800ft·lbs
    100000N·m
    73800ft·lbs
    125000N·m
    92250ft·lbs
    High Gear Rated Speed(RPM) 43 43 40 33
    Low Gear Rated Speed(RPM) 8 8 2.7 2.2
    Rated Operation Pressure 16Mpa
    2320psi

    14MPa
    2030psi

    16Mpa
    2320psi
    18Mpa
    2610psi
    Max. Flow 120L/min
    32gpm
    120L/min
    32gpm
    114L/min
    30gpm
    120L/min
    32gpm
    Pneumatic Operation Pressure / / 0.5-0.9MPa
    72.5-130.5psi
    0.5-0.9MPa
    73-131PSI
    Dimension(in)(L×W×H)(mm) 1250×780×1000
    49.2×30.7×39.4
    1300×770×850
    51×30.3×33.5
    1700×1000×1400
    66.9×39.4×55.1
    1750×1060×1680
    70.9×43.3 ×57
    Weight(Combination) 650kg
    1433lbs
    850kg
    1874lbs
    2400kg
    5291Ib

    2500kg
    5512Ibs

                                 ZQ127/25                                                                         ZQ203/100



                              ZQ162/35                                                                              ZQ203/125
