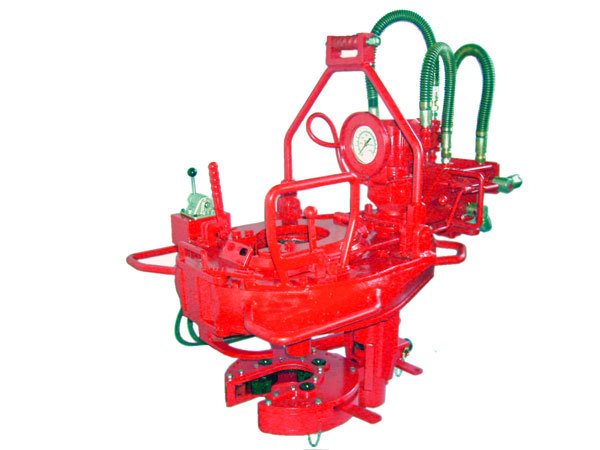

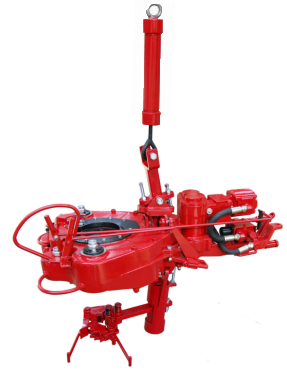

YQ Series Hydraulic Power Tongs /Model YQ115-9YA /12Y/16Y(4500/5500/5600)

The main products are all kinds of power tongs, chucks, hooks, lifting cards, hydraulic stations and other petroleum equipment. A high-tech joint-stock enterprise integrating manufacturing, sales and research and development, specializing in the production of petroleum well repair equipment.

Key words:

Classification:

YQ Series Hydraulic Power Tongs

E-mail:

office@balipm.com

Inquiry

Details

YQ Series Hydraulic Power Tongs is a new multifunctional hydraulic power tong, using advanced foreign
technology, and co-produced with American company. Advanced tubing clamping technology and transmission
system are adopted, which can safely, conveniently and effectively clamp and unload tubing, small casing and
small drill pipe of different specifications within the specified range. It is an ideal equipment for oilfield workover
operation.

YQ115-9Y (RS/RSX、CTS)Features:

 Chain drive mode &Two-speed structure.

 Change the jaws to meet the demand.

 Two torque outputs with two hydraulic motors

YQ115-9YA/12Y/16Y (4500、5500、5600 )Features:

 Planetary gear reduction drive &Two-speed structure.

 Change the jaws to meet the demand.

 Unique safety door design to prevent wrong operation.

Models	YQ115-9Y （RS/RSX standard)	YQ115-9Y(CTS)	YQ115-9YA(4500/HSC45)	YQ115-12Y(5500)	YQ115-16Y(5600)
Range	1.05"~1.9000" 2 3/8"~4 1/2"		1.05"~2.063" 2 3/8"~4 3/4"
High Gear Rated of Torque	1600 N·m 1200 ft·lbs	2300 N·m 1700 ft·lbs	2000 N·m 1470 ft·lbs	1900 N·m 1400 ft·lbs	2500 N·m 1840 ft·lbs
Low Gear Rated of Torque	6300 N·m 4650 ft·lbs	9000 N·m 6670 ft·lbs	7300 N·m 5380 ft·lbs	9700 N·m 7150 ft·lbs	13000 N·m 9590 ft·lbs
High Gear Rated Speed(RPM)	83	68	96	101	76
Low Gear Rated Speed(RPM)	21	18	26	20	16
Rated Working Pressure	14 M pa（2000psi）
MWP	MWP 17M pa（2500psi）
Rated Flow	114 L/min（30gpm）
Max. Flow	151 L/min（40gpm）
Dimension(in)(L×W×H)(mm)	1300×680×380 mm 51.2"×26.8"×15"		788×1092×660mm 31″×43″×26″
Weight	350 Kg（760 lbs）		320 Kg（705 lbs）	350 Kg（760 lbs）
